Riello Start Condens is a wall-mounted condensing boiler of small dimensions, which allows installation almost anywhere in the house. It reduces operating costs by up to 35% compared to a conventional boiler, helping to protect the environment. A horizontal exhaust terminal with a 60/100mm curve is included.
-The combined function boiler offers a highly proportional function and can be combined with solar systems with the appropriate accessories.
-Range Rated certification ensures maximum performance throughout its power range and can be easily adjusted to the actual needs of the system.
-High performance circulator with low energy consumption (IEE<0.20) (GRUNDFOS 15-60).
-The user can always have accurate information about the operation of the boiler with the help of the LED indicators and the digital display.
-Built-in compensation software using an external sensor environment (as an accessory).
-Can be placed outdoors partially protected, IPX5D.
-Antifreeze protection (up to -3°C).
The product complies with the requirements of the ERP regulation.
Compliant with European Directive 2009/125/CE, ensuring low operating costs.
Low emissions, class 6.
Technical characteristics of the 25 kW model:
Nominal thermal power heating (80°C/60°C)-ZNX min-max: 5.00-20.00 / 5.00-25.00kW
Pn Efficiency (80°C/60°C): 98.5%
Yield 30% Pn (ref. 30°C): 108.9%
Production ZNX I/min (Δt 25°C): 14.3
Gas: NG or LPG
Energy class: A

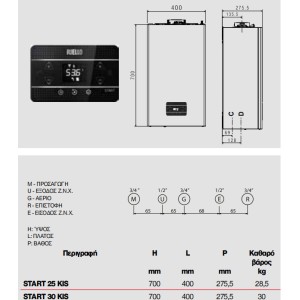

Dimensions (HxWxD): 720 x 405 x 240mm
Weight: 30kg
